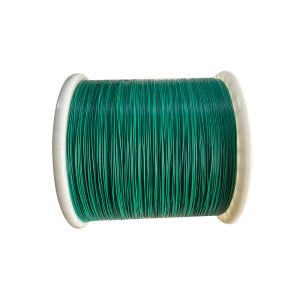

Plated Copper Wire with ETFE Insulation
Brief description:
- Type: K, E, J, T, N, etc
- Style: bright or oxidized
- Application: forming two hot electrodes of thermocouple or compensating cable
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Thermocouple wire
- Product Size: 0.05mm to 10.0mm
- Delivery time: 7-20days which is according to quantity
- Eco-friendly: Yes
- MOQ: 1kgs
- Trade term: FOB, EXW, CIF, CFR
- Payment term: T/T, Western Union, L/C
- Certificate: ISO,CQC ROHS
- Making sample time: all type in stock
- Advantage: high quality with high measuring accuracy, fast thermal response, high mechanical strength, long service lifetime, wide temp measuring range of -200-1300centigrade
Thermocouple variety and index for thermocouple WIRE
| Thermocouple Variety and Index |
| Variety |
Type |
Measurement Range(°C) |
| NiCr-NiSi |
K |
–200–1300 |
| NiCr-CuNi |
E |
–200–900 |
| Fe-CuNi |
J |
–40–750 |
| Cu-CuNi |
T |
–200–350 |
| NiCrSi-NiSi |
N |
–200–1300 |
| NiCr-AuFe0.07 |
NiCr-AuFe0.07 |
–270–0 |
Thermocouple type and grade for thermocouple TYPE K ROD
| Thermocouple Type |
Grade |
Temperature Range(°C) |
Allowable Deviation |
| type K and type N |
I |
–40–1100 |
±1.5°C or±0.4%t |
| II |
–40–1300 |
±2.5°C or ±0.75%t |
| III |
–200–40 |
±2.5°C or ±1.5%t |
| type E |
I |
–40–1100 |
±1.5°C or ±0.4%t |
| II |
–40–1300 |
±2.5°C or ±0.75%t |
| III |
–200–40 |
±2.5°C or±1.5%t |
| type J |
I |
–40–750 |
±1.5°C or ±0.4%t |
| II |
–40–750 |
±2.5°C or ±0.75%t |
| type T |
I |
–40–350 |
±0.5°C or± 0.4%t |
| II |
–40–350 |
±1.0°C or± 0.75%t |
| III |
–200–40 |
±1.0°C or± 1.5%t |
| NiCr-AuFe0.07 |
I |
–270–0 |
±0.5°C |
| II |
±1.0°C |
Specification of alloy wires for thermocouple WIRE
| Anode |
Cathode |
Diameter(mm) |
Maximum Temperature(°C) |
| name |
code |
name |
code |
long-time using |
short-time using |
| NiCr10(Chromel) |
KP |
NiSi3(Alumel) |
KN |
Φ0.3 |
700 |
800 |
| Φ0.5 |
800 |
900 |
| Φ0.8 Φ1.0 |
900 |
1000 |
| Φ1.2 Φ1.6 |
1000 |
1100 |
| Φ2.0 Φ2.5 |
1100 |
1200 |
| NiCr14.2Si |
NP |
NiSi4 |
NN |
Φ3.2 |
1200 |
1300 |
| NiCr10(Chromel) |
EP |
CuNi45(Copel) |
EN |
Φ0.3 Φ0.5 |
350 |
450 |
| Φ0.8 Φ1.0 Φ1.2 |
450 |
550 |
| Φ1.6 Φ2.0 |
550 |
650 |
| Φ2.5 |
650 |
750 |
| Φ3.2 |
750 |
900 |
| Fe(Iron) |
JP |
CuNi45(Copel) |
JN |
Φ0.3 Φ0.5 |
300 |
400 |
| Φ0.8 Φ1.0 Φ1.2 |
400 |
500 |
| Φ1.6 Φ2.0 |
500 |
600 |
| Φ2.5 Φ3.2 |
600 |
750 |
| Cu(Copper) |
TP |
CuNi45(Copel) |
TN |
Φ0.2 Φ0.3 |
150 |
200 |
| Φ0.5 Φ0.8 |
200 |
250 |
| Φ1.0 Φ1.2 |
250 |
300 |
| Φ1.6 Φ2.0 |
300 |
350 |
Ohmalloy Material Co.,Ltd
Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of
alloy such as high resistance alloy, low-resistance copper nickel
alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.
Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning,
rolling and slitting, full set of testing machine and can meet all
kinds of technical requirement from customer. Our product is widely
used in heating equipment, big steel mill, mineral, electrical
equipment, food machinery, auto industry, aerospace industry. Our
product not only is popular in domestic market, but also been
exported to all over the world.
Our company aims to be the best-quality alloy producer in the
world. We insist on developing the more advanced alloy strip
technology, to serve all the customer, improve people’s living
level, make a more green earth in the future
