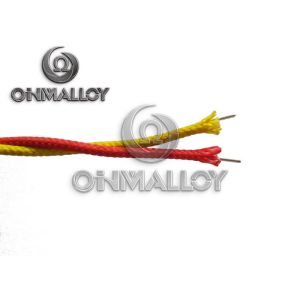

Vitreous Silica High Temperature Thermocouple Cables ASTM Standard AWG 15 KCA Type

Ask Lasest Price
Brand Name :	OHMALLOY
Model Number :	K-HP-HP-30
Certification :	ISO9001-2008
Price :	negotiable
Payment Terms :	T/T, L/C,
Supply Ability :	500000meters per month
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

Vitreous Silica High Temperature Thermocouple Cables ASTM Standard AWG 15 KCA Type

Type KCA Thermocouple Cable Chromel / Copel Material Viterous Silica Insulation

Specifications

1.Style:High temperature Wire
2.Thermocouple wire
Thermocouple wire Classification
Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.

Thermocouple variety and index

Thermocouple Variety and Index
Variety	Type	Measurement Range(°C)
NiCr-NiSi	K	-200-1300
NiCr-CuNi	E	-200-900
Fe-CuNi	J	-40-750
Cu-CuNi	T	-200-350
NiCrSi-NiSi	N	-200-1300
NiCr-AuFe0.07	NiCr-AuFe0.07	-270-0

3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire

Dimensions / Tolerance mm ) : 4.0+-0.25

Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type		ANSI Color Code		Initial Calibration Tolerances
Wire Alloys	Calibration	+/- Conductor	Jacket	Temperature Range	Standard Limits	Special Limits
Iron(+) vs. Constantan(-)	J	White/Red	Brown	0°C to +285°C 285°C to +750°C	±2.2°C ± .75%	±1.1°C ± .4%
CHROMEL(+) vs. ALUMEL(-)	K	Yellow/Red	Brown	-200°C to -110°C -110°C to 0°C 0°C to +285°C 285°C to +1250°C	± 2% ±2.2°C ±2.2°C ± .75%	±1.1°C ± .4%
Copper(+) vs. Constantan(-)	T	Blue/Red	Brown	-200°C to -65°C -65°C to +130°C 130°C to +350°C	± 1.5% ±1°C ± .75%	± .8% ± .5°C ± .4%
CHROMEL(+) vs. Constantan(-)	E	Purple/Red	Brown	-200°C to -170°C -170°C to +250°C 250°C to +340°C 340°C+900°C	± 1% ±1.7°C ±1.7°C ± .5%	±1°C ±1°C ± .4% ± .4%

Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type		ANSI Color Code		Initial Calibration Tolerances
Wire Alloys	Calibration	+/- Conductor	Jacket	Temperature Range	Standard Limits	Special Limits
Iron (+) vs. Constantan(-)	JX	White/Red	Black	0°C to +200°C	±2.2°C	±1.1°C
CHROMEL (+) vs. ALUMEL (-)	KX	Yellow/Red	Yellow	0°C to +200°C	±2.2°C	±1.1°C
Copper(+) vs. Constantan(-)	TX	Blue/Red	Blue	-60°C to +100°C	±1.1°C	± .5°C
CHROMEL(+) vs. Constantan(-)	EX	Purple/Red	Purple	0°C to +200°C	±1.7°C	±1.1°C
