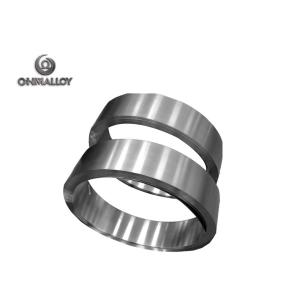

High Hardness Heat Resistant Wire SUS314 Cold Rolled 314 Stainless Steel Strip

Ask Lasest Price
Brand Name :	OHMALLOY
Model Number :	314 stainless steel strip
Certification :	SGS,ISO
Price :	negotiable
Payment Terms :	L/C, T/T, , MoneyGram
Supply Ability :	50 Tons per month
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

High Hardness Heat Resistant Wire SUS314 Cold Rolled 314 Stainless Steel Strip

Production steel category
301/304/316/409L/410L/430/316L/304L/409/310S/321

200 series: 201,202,202Cu,204Cu,
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330,
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L
Others: 254SMo,253Ma,F15,Invar36,1J22,N4,N6 etc
Chemical composition(JIS-G4305/4312) Unit:%

Steel category	C	Si	Mn	P	S	Cr	Ni	Mo	Ti
301	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	16.00-18.00	6.00-8.00
304	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	18.00-20.00	8.00-10.50
316	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	16.00-18.00	10.00-14.00	2-3
409L	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	10.50-11.75			6*C%-0.75
410L	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	11.00-13.50
430	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	16.00-18.00
316L	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	16.00-18.00
304L	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	18.00-20.00	12.00-15.00	2-3
409	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	10.50-11.75	9.00-13.00		6*C%-0.75
310S	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	24.00-26.00	19.00-22.00
321	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	17.00-19.00	9.00-13.00		≥5*C%

Characteristics:
Shiny surface condition excellent workability
Applications:
It generally used in braiding the hose for bathing product and machinery. With it good flexibility,resistant to high temperature and resistant to corrosion,it used widely in many industries.
Type 304 often refers to as "18-8" (18% chromium, 8% nickel ). T-304 is the basic stainless alloy mostly commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit. Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.
Type 316: Stabilized by the addition of 2% molybdenum, T-316 is an "18-8" alloy. Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulfur-bearing water or halogen salts, such as chlorides are present. Type 316 L: Type 316 L is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.
A,Thickness tolerance(JIS-G4305) Unit:mm

(width) (Depth)	<160	160-250	250-400	400-630	630-1000
<0.10	±0.010	±0.020	-	-	-
0.10-0.16	±0.015	±0.020	-	-	-
0.16-0.25	±0.020	±0.025	±0.030	±0.030	-
0.25-0.40	±0.025	±0.030	±0.035	±0.035	±0.038
0.40-0.60	±0.035	±0.040	±0.040	±0.040	±0.040
0.60-080	±0.040	±0.045	±0.045	±0.045	±0.05

B,Width Tolerance of Steel Strip Trimming Unit:mm

(width) (edge status)	<400	400-630	630-1000
rolled edge	+100	+200	+250

C,Width Tolerance of Rolled Steel Strip Edge Unit:mm

(width) (Depth)	<160	160-250	250-400	400-630	630-1000
≤0.60	±0.15	±0.15	±0.30	±0.30	±0.50
0.60-0.80	±0.15	±0.15	±0.30	±0.30	±0.50

Product Category	Steel Grade	Other national standard
Product Category	Steel Grade	USA, ASTM	Japan, JIS	Germany, DIN
Stainless Steel	Y1Cr18Ni9,0Cr19Ni9,0Cr18Ni9Cu3,0Cr18Ni9,00Cr19Ni10,0Cr19Ni9N,0Cr23Ni13,0Cr25Ni20,0Cr17Ni12Mo2,0Cr18Ni12Mo2Ti,00Cr17Ni14Mo2,0Cr17Ni14Mo2N,1Cr18Ni9Ti,1Cr18Ni12,0Cr19Ni13Mo3,00Cr19Ni13Mo3,H0Cr17Ni12Mo2,H1Cr24Nii13,H1Cr21Ni10,1Cr18Ni9,1Cr17Nn6Ni5N,1Cr18MnNi5N,0Cr18Ni12MoCu2,5Cr21Mn9Ni4N,0Cr17Ni4Cu4Nb,0Cr17Ni7Al,1Cr17,1Cr17Mo,0Cr13,0Cr11Nb,Y1Cr17,1Cr13,1Cr13Mo,Y1Cr13,2Cr13,3Cr13,4Cr13,5Cr13,3Cr13Mo,4Cr17Mo,Y3Cr13,1Cr17Ni2,1Cr11Ni2W2MoV,4Cr9Si2,4Cr10Si2Mo,H1Cr13,6Cr13Mo,9Cr18,9Cr18Mo	303,304,304HC,302HQA,304H,304M,304M4,304S,304L,304N,304MN,309S,310S,316,316L,316N,321,305,317,317L,ER316,AWS,ER308,AWS,ER308,AWS,302,201,202,EV8,AISI,630,631,430,434,410S,430F,410,416,420,420,420F,431,HNV3,SAE,ER410,AWS,440C	SUS303,SUS304,SUS304J3,XM-7,SUS304L,SUS309S,SUS310S,SUS316,SUS316L,SUS316L,SUS321,SUS305,SUS317,SUS317L,SUSY316,SUSY309,SUSY308,SUS302,SUS201,SUS202,SUS316J1,SUH35,SUS630,SUS631,SUS430,SUS434,SUS410S,SUS430F,SUS410,SUS410J1,SUS416,SUS420J1,SUS420J2,SUS420J2,SUS420F,SUS431SUH1,SUH3,SUSY410,SUS440C	X12CrNiS18 8,X5CrNiS18 9,X2CrNi18 9,X5CrNiMo18 10,X10CrNiMoTi18 10,X8Cr14,X2CrNiMo18 10,X10CrNiTi18 9,X5CrNi19 11,X2CrNiMo18 16,X5CrNiMo19 11,X12CrMi22 12,X12CrNi18 8,X53CrMnNiN21-9,X7CrNiAl17 7,X8Cr17,X7Cr13,X6CrMo17,X12CrMoS17,X10Cr13,X15Cr13,X12Cr13,X20Cr13,X30Cr13,X40Cr13,X46Cr13,X22CrNi17,45CrSi93,X40CrSiMo10 2,X55CrMo14,X105CrMo17
